Package includes: • control cassette • control plug • wired foot control

Welding positioners SPARTUS 100P

Product code:

SP020-00-100P

Status:

News

Add to list:

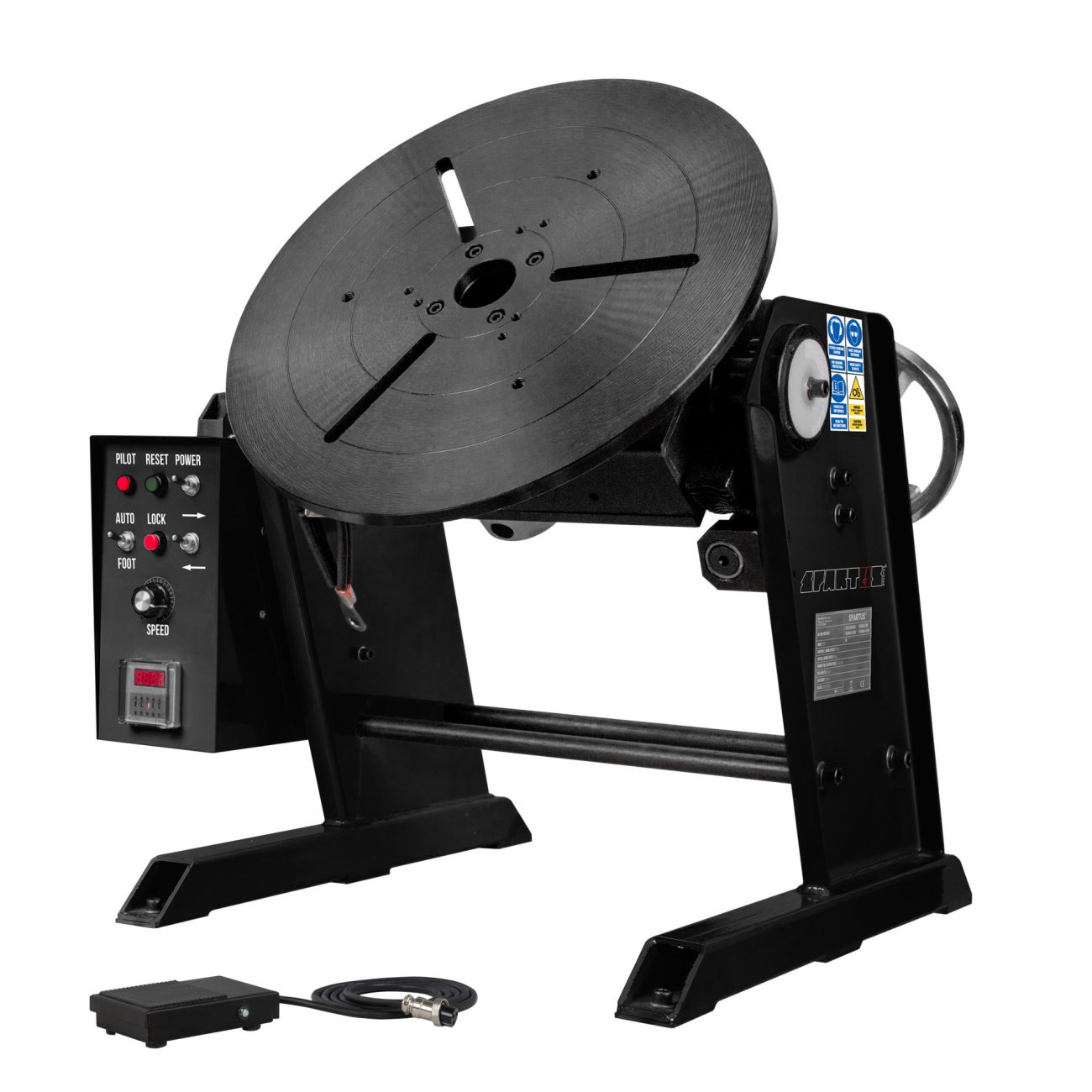

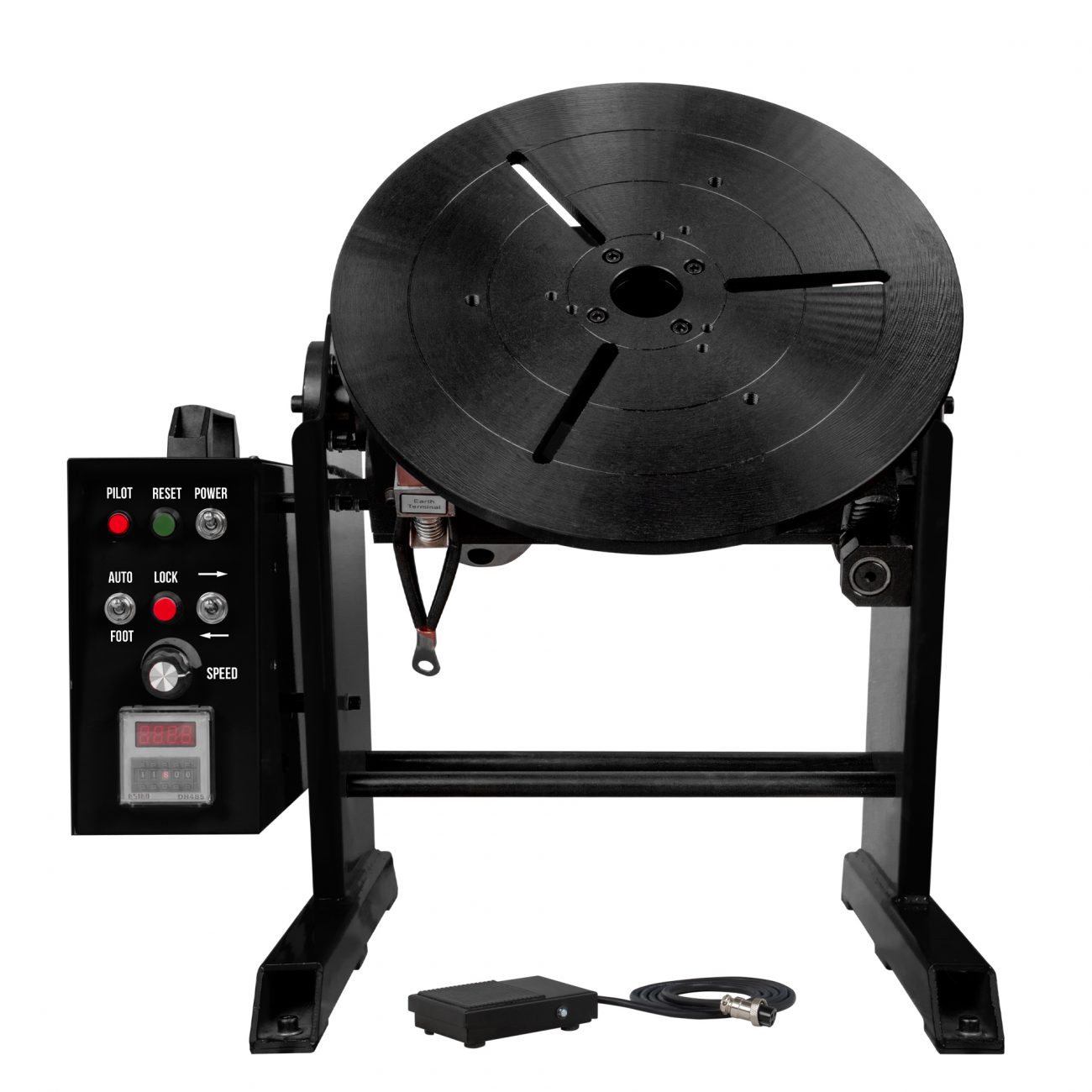

SPARTUS 100P welding positioner

Pozycjoner 100P

The SPARTUS 100P welding positioner is a modern device that supports the welding process, enabling precise rotation and positioning of elements with a maximum load capacity of 100kg. Powered by a single-phase 230V supply, it ensures convenient and versatile operation in various workshop conditions. Smooth rotation speed adjustment and the ability to change the rotation direction allow for optimal positioning of the workpiece, increasing welder comfort and improving the quality of welded joints. A robust construction and simple control panel make the SPARTUS positioner a reliable tool for both series production and single-piece work.

Horizontal loading capacity100kg
Vertical loading capacity50kg
Working table tilting angle0 - 90°
Rotation speed0.5-5rpm
Plate diameter400mm
Input~1× 230V ± 10% 50 / 60 Hz
Weight70kg
Kompatybilne uchwyty tokarskie200P, 201P, 300P, 301P
