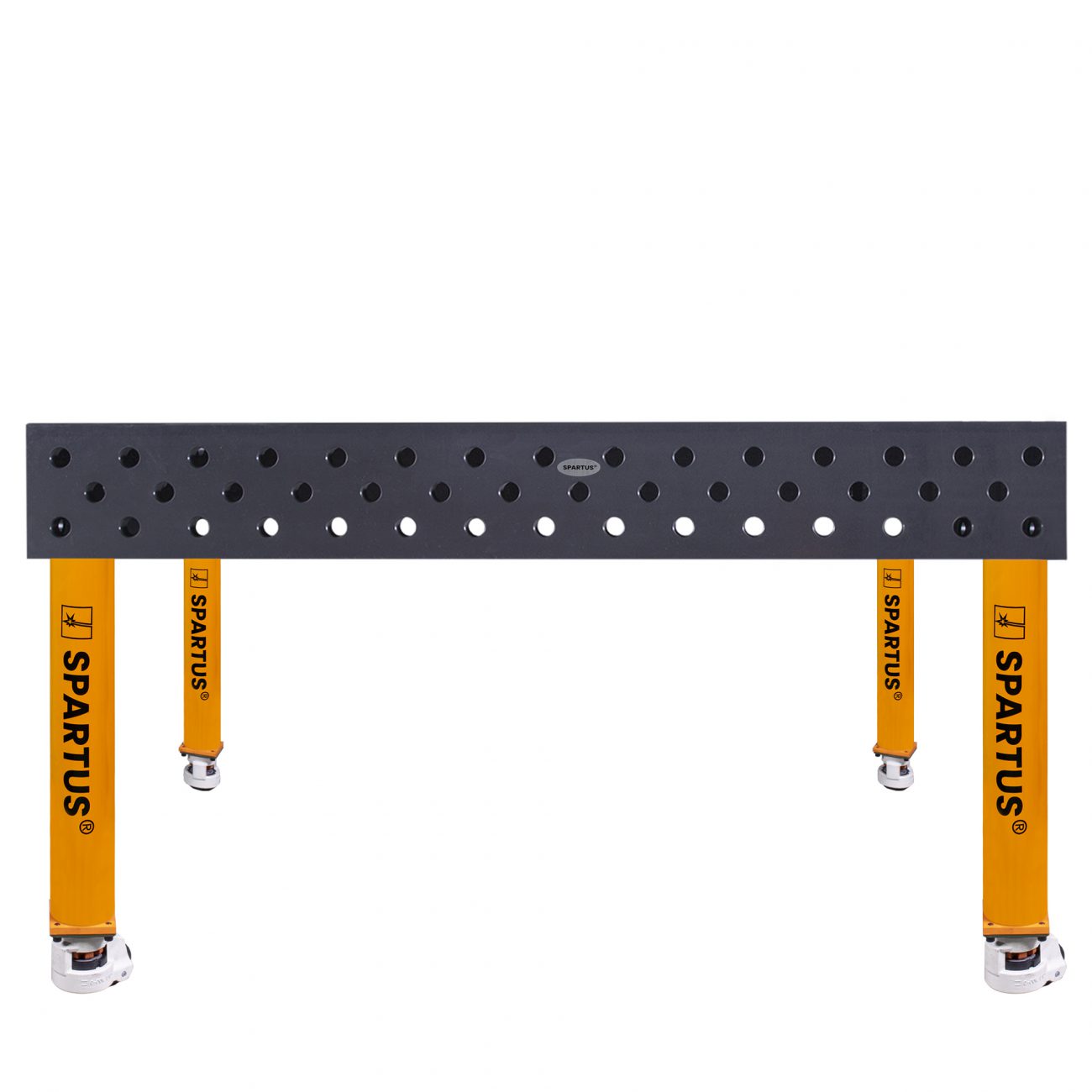

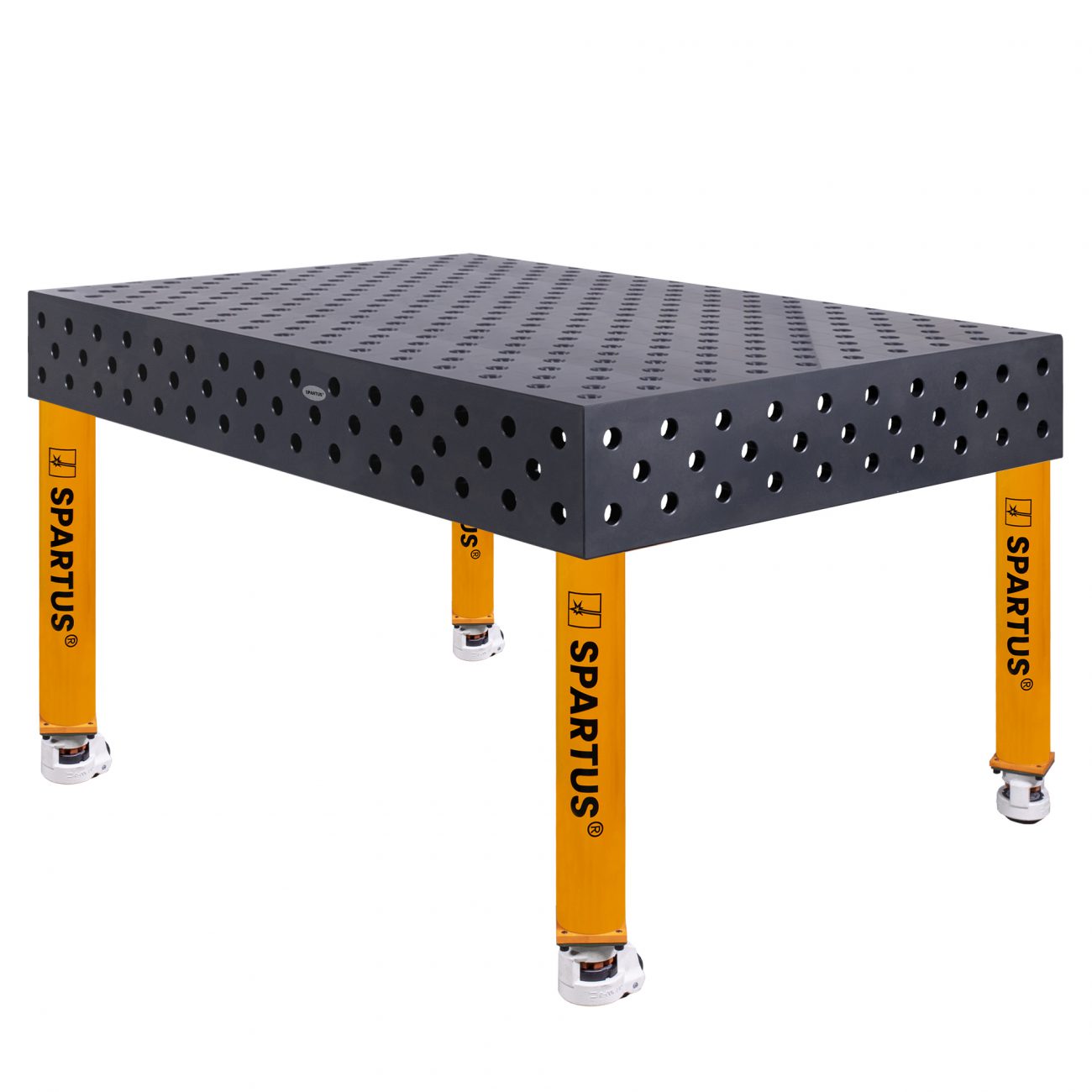

Nitrided SPARTUS MAXIMUS welding table in the D28 system – diagonal grid
The SPARTUS MAXIMUS D28 welding table is an advanced solution for the most demanding steel fabrication and welding processes. Made of solid, nitrided S355J2+N steel and equipped with a Ø28mm fixturing system, it provides an ultra-stable, industrial-grade base for professional production workstations. Its exceptional durability, machining precision, and modularity make it a premium-class tool for specialists who require absolute repeatability and long-term reliability.
25mm nitrided tabletop – maximum durability and resistance
The key feature of the SPARTUS MAXIMUS D28 table is its nitrided tabletop surface, which significantly increases hardness, wear resistance, corrosion resistance, and heat resistance. Thanks to the nitriding process, S355J2+N steel maintains perfect working parameters even under intensive use, typical for mass production and large-scale structures.
Tabletop thickness – 25mm – places the SPARTUS MAXIMUS D28 among the most durable solutions available on the market. This construction minimizes vibrations, increases resistance to deformation, and ensures long-term flatness for years of operation.
Reinforced ribbing – maximum structural rigidity
Beneath the working surface of the SPARTUS MAXIMUS tables lies a solid, precisely engineered ribbing structure that significantly increases the rigidity of the entire table. Densely spaced ribs eliminate the risk of bending and deformation, ensuring tabletop stability even under heavy loads or when working with large steel components. The table maintains flatness at the level of 0.1mm / 1000mm, meeting strict industrial requirements. Such accuracy provides ideal conditions for positioning components with high geometric precision.
System of drilled and milled Ø28mm holes
The SPARTUS MAXIMUS D28 table is equipped with high-precision Ø28mm mounting holes, drilled and milled to system accuracy. The hole layout in the D28 system grid ensures full compatibility with accessories designed for working with heavy structural components. The D28 system enables:
- fast clamping of large and heavy workpieces,
- stable operation with system clamps and fixtures,
- repeatable setups for serial production,
- full integration with advanced metrology tools and assembly frames.
Millimetre scale
A clear millimetre scale is applied on the tabletop surface, making it easier to position workpieces, fixtures, and accessories quickly. It streamlines everyday work and reduces setup time — especially in repetitive and serial production.

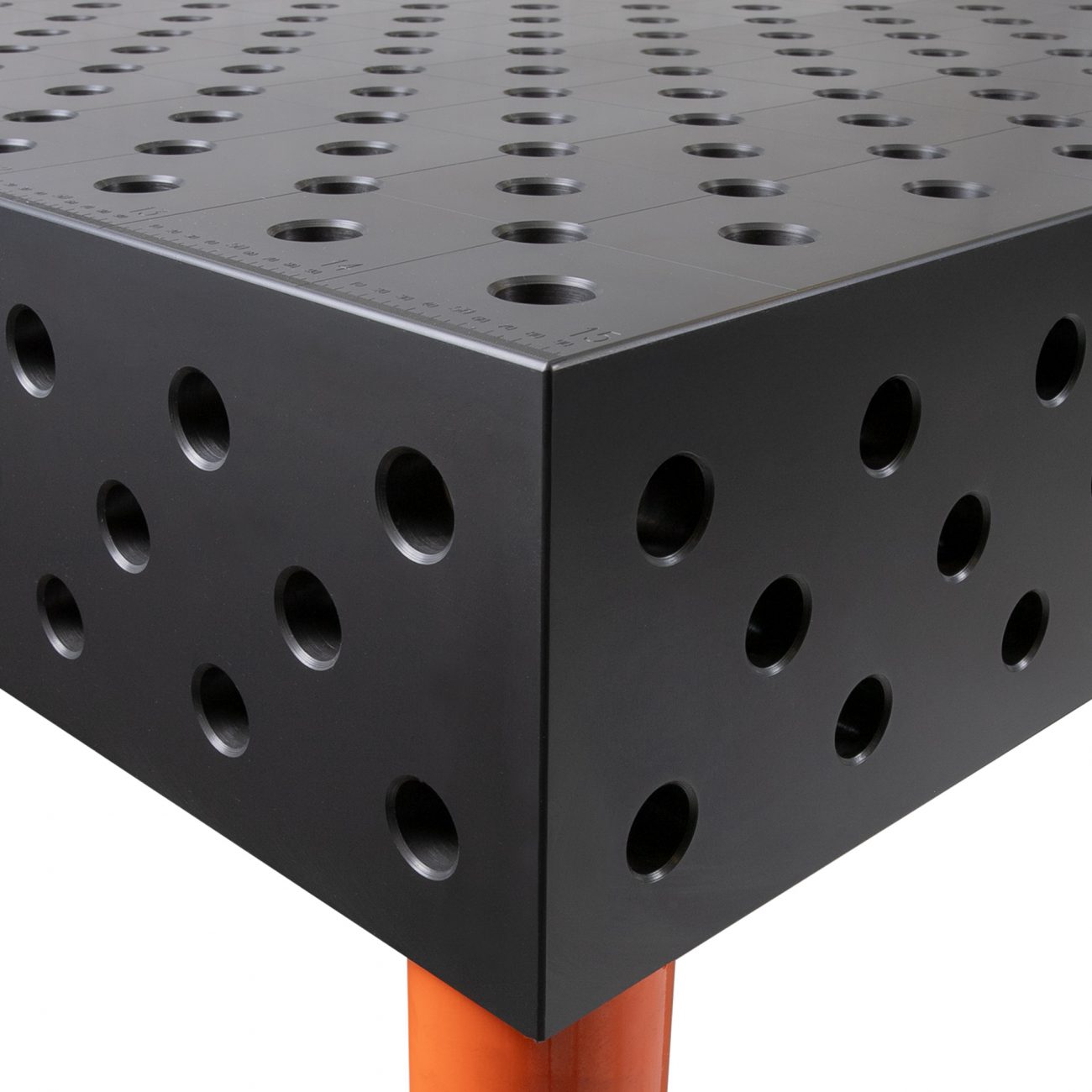

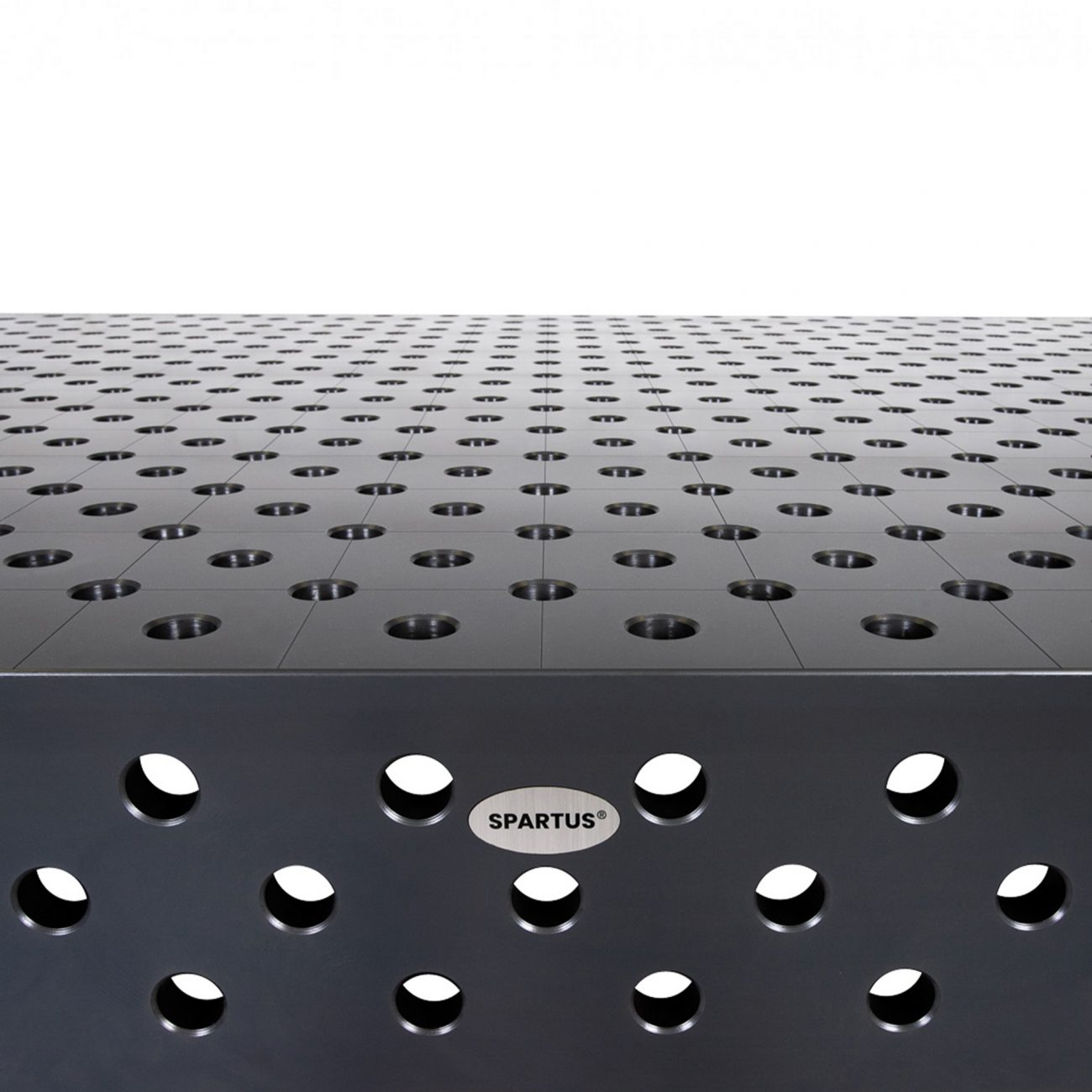

Diagonal grid – maximum setup precision and geometry control
The SPARTUS MAXIMUS D28 table with a diagonal grid greatly expands positioning capabilities. The layout of angled lines makes it possible to determine angles, symmetry axes, and construction directions quickly and extremely accurately. This makes the table perfect for tasks requiring precise geometry — such as building frames, spatial segments, bent profiles, or tubular structures. The diagonal grid also helps control deviations and torsion, increasing repeatability and minimizing assembly errors. It is a solution that significantly improves workflow wherever flawless alignment and geometry are essential.
200mm modular 3D side
SPARTUS MAXIMUS D28 tables are equipped with a 200mm wide modular 3D side, allowing you to build structures along three axes simultaneously. It enables you to: expand the working surface, mount vertical and angled components, create dedicated assembly setups, and adapt the table shape to specific projects. The wide 3D side ensures excellent stability and full compatibility with D28 accessories — making it one of the key elements of the system for professionals.
Applications of SPARTUS MAXIMUS D28 welding tables
SPARTUS D28 welding tables are essential equipment for:
- heavy industry and steel structure manufacturing,
- welding and assembling large components,
- production and assembly lines,
- companies manufacturing frames, tanks, vehicles, and large-scale structures,
- professional metal workshops, prototype facilities, and training centres.
The D28 system provides maximum stability and compatibility with accessories that enable the execution of the most demanding projects.
Tools for SPARTUS D28 welding tables
The SPARTUS range includes a full selection of accessories dedicated to the D28 system:
- system clamps,
- 2D and 3D squares,
- mounting blocks and prisms,
- pins, bolts, stops,
- components for expanding the working surface,
- ready-made accessory sets for various applications.
Full compatibility with the hole system and 3D side allows you to create highly advanced assembly stations tailored to every stage of the production process.
SPARTUS MAXIMUS D28 – the standard of professional work
By choosing the SPARTUS MAXIMUS D28 welding table, you invest in industrial-grade precision, stability, and durability. It is a solution for those who expect full stability when working with large structures.
