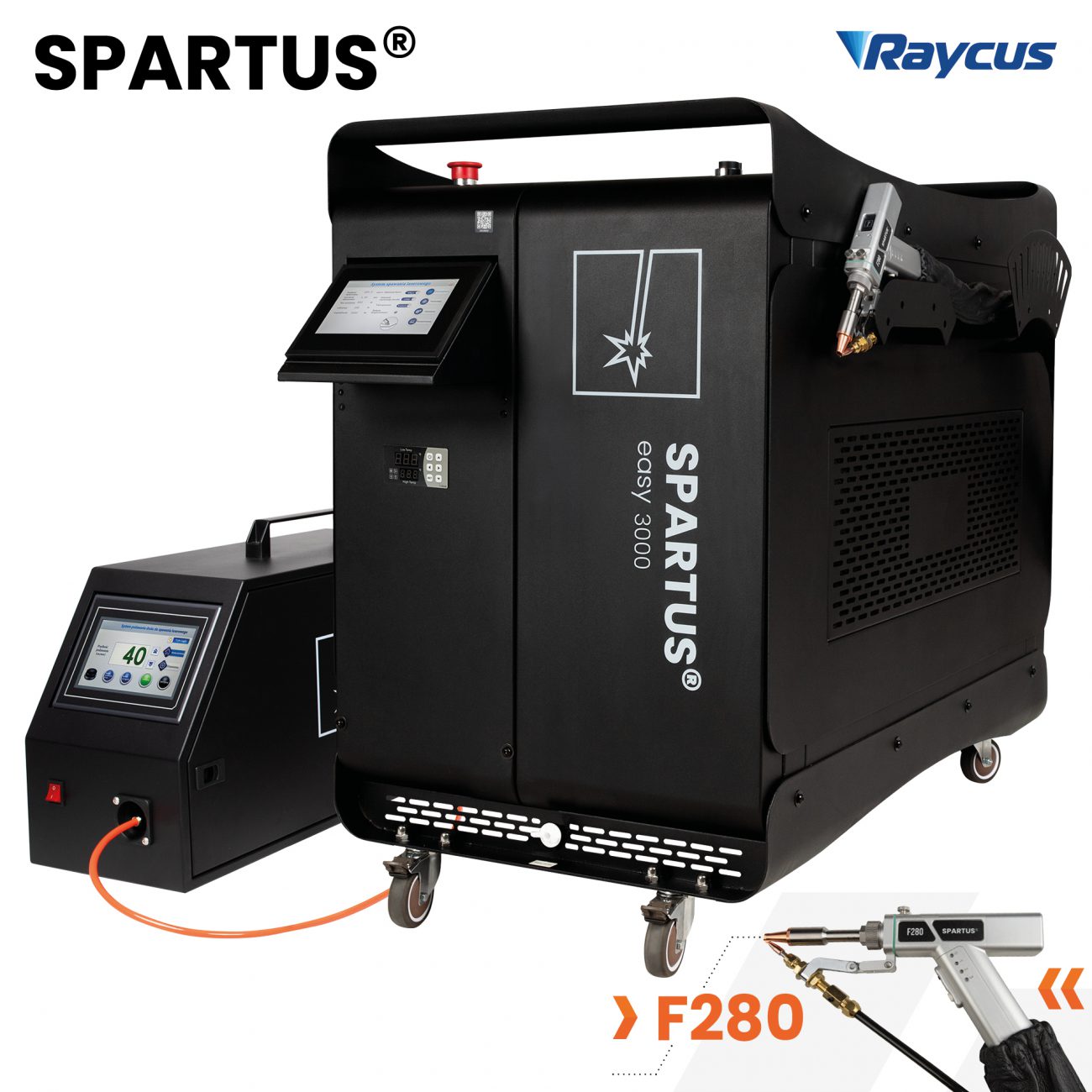

SPARTUS® Easy 3000 laser welding machine with wire feeder

SPARTUS® EASY 3000  – INNOVATIVE TECHNOLOGY FOR WELDING, CUTTING AND CLEANING MATERIALS

The SPARTUS® Easy 3000 laser welder is the key to achieving unparalleled quality in connections. This device surpasses traditional welding methods like MIG or TIG due to the exceptional precision it offers. The laser enables the creation of significantly smaller, microscopic-sized welds, thereby minimizing the heat-affected zone on the surrounding material. Consequently, laser welding is an excellent choice for joining even the tiniest components that are challenging to weld using other welding methods.

ADVANTAGES OF  SPARTUS® Easy 3000:

• High precision welding
• Excellent control over the welding process
• Limited material distortion
• Clean welds that require no post-processing
• Application in hard-to-reach areas
• Optimized production time
• Durable and resilient joints
• Capability to join, cut, and clean various materials
• High-end laser source

WIRE FEEDER

The wire feeder for the SPARTUS® Easy 3000 laser welder is a device that precisely delivers welding material to the welding area. This is crucial for controlling welding parameters, improving weld quality, and enhancing process efficiency. It automates the wire feeding, allowing the operator to focus on monitoring the welding process. As a result, the wire feeder is a significant tool in laser welding, especially in industrial production.

WELDING MATERIALS

SPARTUS F280 LASER HEAD – PRECISION, RELIABILITY AND CONTROL

The F280 laser head features an advanced real-time temperature monitoring system. A flashing red light indicates overheating, while a steady light signals other alarms, providing full control over device operation.

An independent mode switch button enables quick and convenient switching between preset processes. The digital controller ensures high resistance to interference and stable, reliable performance in any conditions.

Thanks to the improved optical design, the head delivers high-quality welds, minimal distortion, and deep penetration, resulting in excellent welding results.

ONE DEVICE, MULTIPLE FUNCTIONS

SPARTUS® Easy 3000 is not only used for welding but also for cutting and cleaning various materials.

Laser cutting allows for precise material separation, creating accurate and clean edges without the need for mechanical processing. The cutting function as an additional device option allows cutting stainless steel up to 2mm and carbon steel up to 1.5mm. Copper and aluminum, as materials with a high beam reflection coefficient, should not be subjected to the laser cutting process.

Laser cleaning is an effective method for removing contaminants, paint layers, or rust from material surfaces while preserving their integrity and quality. Thanks to these laser technology applications, we achieve exceptional material processing efficiency with minimal impact on their structure.

MULTILINGUAL MENU

The device interface is available in the following languages: • Polish • English • German • French • Spanish • Italian • Czech • Slovak • Greek • Romanian • Portuguese • Korean • Turkish • Russian

THE SET INCLUDES
• laser source
• F280 handheld laser head (9,5m) with F150 focus lens
• wire feeder with 1.2 – 1.6V fi37 rollers
• distilled water or coolant – selection depending on the season
• 2x wire guide rollers 0.8 – 1.0V fi37
• insulated steel liner
• teflon liner
• set of single nozzles for the laser head
• 4 single wire feeder tips
• protective lenses
